Cone grinder/Rotary crusher parts: Function and selection strategy

Cone sharpeners and rotary crushers are indispensable heavy equipment in the mining and construction industries, and their efficient operation depends on high-quality parts and regular maintenance. This article will detail the key parts of these two devices, analyze their functions and importance, and provide selection strategies.

First, conical sharpening machine parts
1. Broken wall (moving cone)
The broken wall is one of the core components of the conical knife sharpener, which is usually made of high wear-resistant composite materials with excellent wear resistance and high cost performance. In the crushing process, the crushing wall rotates at a high speed and forms shear action with the fixed cone (rolling mortar wall), so as to achieve the crushing of the material.
2. Rolled mortar wall (fixed cone)
The grinding wall is another key part of the cone sharpening machine, which together with the crushing wall forms the crushing chamber. The rolled mortar wall is usually made of high manganese steel material, which has excellent properties such as impact resistance, wear resistance and extrusion resistance, and can withstand the huge impact force from the crushing process.
3. Bowl bearing
The bowl bearing is an important supporting part in the taper grinder, which mainly bears the weight of the machine and the impact force in the crushing process. Before installing the bowl bearing, thoroughly clean the debris in the oil groove and oil hole, and check whether the dust ring and the oil stop ring are in good condition.

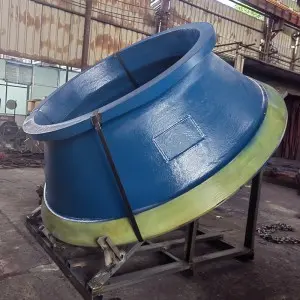

Cone Liner Concave
4. Copper jacket
The copper sleeve is an important sliding bearing of the taper sharpening machine, which is located between the moving cone spindle and the big gear, and bears the axial and radial loads in the crushing process. The design and material of the copper sleeve directly affect the stable operation and durability of the machine.
5. Other accessories
In addition to the above main parts, the taper knife sharpening machine also includes auxiliary parts such as springs, adjustment rings, discharge ports and so on. The function of the spring is to prevent the crusher from being damaged when it encounters non-crushing objects; The adjusting ring is used to adjust the shape and size of the crushing chamber to meet the crushing requirements of different materials.

Second, turn back the crusher parts
1. Crushing wall and rolling wall
Bushing and mill wall are the main wear parts responsible for crushing action in rotary crusher. The bushing is mounted on the spindle and rotates relative to the fixed rolling wall to break the raw material into the desired size. Both components are manufactured from ultra-wear-resistant alloy or manganese steel, ensuring excellent durability even under high-speed impact and wear conditions.
2. Upper and lower dust collector
The upper and lower dust control devices are key components designed to prevent dust, fine powder and debris from entering the internal structure of the crusher. By keeping the internal environment clean, these devices help reduce wear on moving parts, reduce maintenance needs and extend the overall service life of the crusher.
3. Gear and rack
Gears and racks form the core of the crusher’s drive system, transmitting power to produce rotary motion. These components are precision-machined from hardened alloys to ensure smooth meshing, reduce vibration and achieve optimal torque transfer.
4. Boom arm shield and lining set
Boom arm shields, narrow arm pads and pinion arm pads are essential to protect the boom assembly from wear, shock and damage during the crushing process. These components are made of high-strength, wear-resistant materials to ensure long-lasting performance.
5. Lock pin alloy
The locking pin alloy is a precision-designed component that plays a crucial role in maintaining the alignment and stability of the crusher spindle. The parts are made of high-grade alloys designed to withstand extreme loads and stresses, ensuring reliable performance.

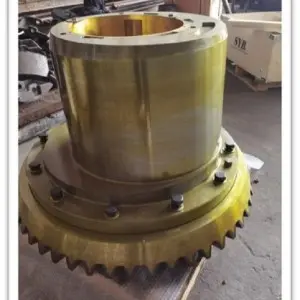

eccentric bushing

Third, choose a strategy
1. Evaluate equipment requirements
Before selecting parts, companies should first assess the specific needs of their equipment. For cone sharpening machines and rotary crushers, it is necessary to consider the type, hardness and particle size of the crushing material, as well as the operating environment and working intensity of the equipment.
2. Consider part quality
High quality parts can significantly improve the performance and service life of the equipment. Therefore, when selecting parts, priority should be given to those parts that use high-quality materials and have been precision machined.
3. Select the right supplier
Choosing a reliable supplier is the key to ensuring part quality. Suppliers should have a good reputation and rich industry experience, able to provide comprehensive after-sales service and technical support.
4. Regular maintenance and replacement
Whether it is a cone grinder or a rotary crusher, regular maintenance and part replacement are important measures to ensure the long-term stable operation of the equipment. The enterprise should make a reasonable maintenance plan according to the actual use of the equipment.

fdsda
The efficient operation of cone sharpeners and rotary crushers depends on high-quality parts and regular maintenance. By understanding the key parts of these devices and their functions, companies can better select the right parts and improve the performance and service life of the equipment.
If you have any further questions or need more detailed information, please feel free to contact us.
