In mines, quarries and industrial applications, jaw crushers are indispensable equipment for breaking large pieces of rock into smaller particle sizes to meet the needs of subsequent processing. Metso’s Nordberg® C™ series of jaw crushers are widely acclaimed for their superior performance and reliability. Among them, the coupling and the jaws as the key components, for the efficient operation and maintenance of the equipment plays a crucial role.
Coupling: The core component of efficient transmission

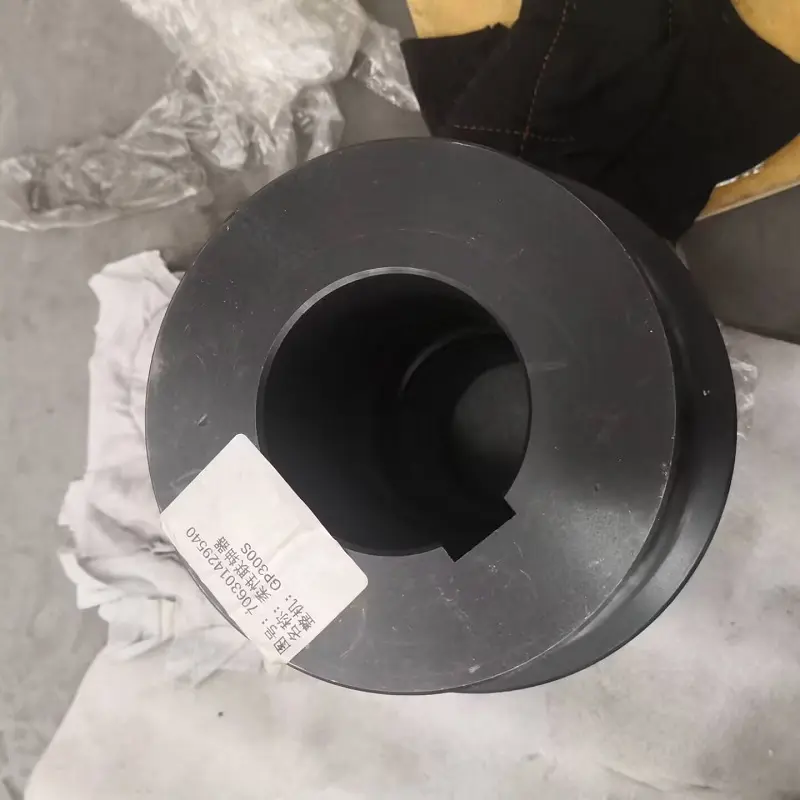

Coupling is a key component used to connect the motor with the drive system in the jaw crusher. Metso Jaw crushers typically use elastic Coupling, such as Lovejoy’s Jaw Coupling, which offers excellent shock absorption and overload protection. It is designed to effectively reduce shock and vibration during start-up, thereby protecting the motor and drivetrain. In addition, the elastic coupling also has the ability to automatically compensate the axial and radial deviation, ensuring the stability and reliability of the transmission system.
In Metso jaw crusher, the selection and installation of the coupling need to be optimized according to the specific working conditions. For example, for large jaw crushers, such as Nordberg® C200™, the motor power is larger, and the bearing capacity and stability of the coupling are more demanding. Therefore, high-strength elastic couplings are usually selected and the efficient operation of the transmission system is ensured through precise neutralization and installation processes.
Jaws: The key factor of crushing efficiency
Jaws (jaw plate) is one of the core components of jaw crusher, its design and material directly affect the crushing efficiency and equipment life. The jaws of Metso jaw breakers are made of highly wear-resistant materials, such as manganese steel or alloy steel, which undergo special heat treatment for high hardness and good impact resistance. The shape and texture of the jaws are also optimized to ensure optimal crushing and material flow.
The jaw design of Metso jaw crusher has the following features:
High wear resistance: After quenching and tempering treatment, the hardness can reach HRC58-62, effectively preventing wear and deformation.
Optimized shape and texture: The jaw surface is designed with non-slip textures, such as cross mesh or twill, to increase friction with the material and improve crushing efficiency.
Quick change design: Metso jaw Crusher’s jaw change design is simple and fast, which significantly reduces downtime and improves equipment utilization.
Customized solutions for Metso jaw crushers
Metso offers customized coupling and jaw jaw solutions for different jaw crusher models. For example, for medium jaw crushers, such as Nordberg® C125™, the coupling and jaws are designed to meet the crushing needs of medium hardness materials. Larger crushers, such as the C200™, are equipped with higher strength couplings and more wear-resistant jaws to cope with high-load crushing tasks.
In addition, Metso offers a variety of optional parts and maintenance tools, such as lifting tools, flywheel shields, etc., to further improve equipment safety and maintenance convenience. These customized solutions ensure that Metso jaw crushers operate efficiently and stably under all conditions.
Sum up
Metso’s jaw crusher coupling and jaws are key components to ensure efficient operation of the equipment. Elastic coupling can effectively reduce the impact and vibration of the transmission system, protect the motor and transmission system; The highly wear-resistant jaw design improves crushing efficiency and equipment life. With customized solutions, Metso Jaw crushers are able to meet the needs of different users, providing reliable crushing equipment for mine, quarry and industrial applications.
