Jaw crusher commonly known as jaw break, also known as tiger mouth. The crusher is composed of two jaw plates, the moving jaw and the static jaw, which simulates the two jaw movements of animals and completes the material crushing operation. Widely used in mining smelting, building materials, road, railway, water conservancy and chemical industry of all kinds of ore and bulk material crushing. Because of the compact and simple structure of this device, it is very popular with consumers, and the accessories of the device are also a topic of great concern to consumers. So, what are the main jaw crusher accessories?
Tooth plate: also known as the jaw plate, it is the main working part of the jaw crusher. The tooth plate of jaw crusher is the material of standard high manganese steel treated by water toughening, and the wear of the tooth plate belongs to cutting wear. Therefore, the material should have high hardness, strong wear resistance, strong extrusion resistance, and the cutting amount of short-range sliding friction of the material on the dental plate is also small. The tooth plate quality should be good toughness, strong fracture resistance, reduce the brittle fracture of the tooth plate in the process of extrusion and impact with the broken material, and reduce the deformation and cracking of the tooth plate surface.
Thrust plate: The thrust plate used in the jaw crusher is an assembled structure, which is assembled by connecting an elbow body with two elbow plate heads. Its main role is: first, the transmission of power, the transmission of power is sometimes greater than the crushing force; The second is to play the role of safety parts, when the crushing chamber falls into the non-crushing material, the thrust plate breaks first, so as to protect the other parts of the machine from damage; The third is to adjust the size of the discharge port, and some jaw crushers adjust the size of the discharge port by replacing the thrust plate of different length sizes.

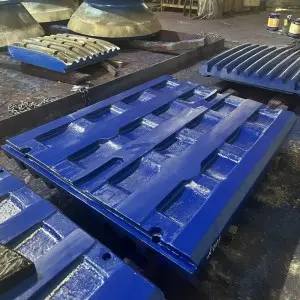

Side guard plate: The side guard plate is located between the fixed tooth plate and the movable tooth plate, which is a high-quality high manganese steel casting, mainly protecting the jaw crusher frame wall in the whole body.
Tooth plate: jaw crusher tooth plate are high quality high manganese steel castings, in order to extend its service life, its shape is designed to be symmetrical, that is, when one end of the wear can be turned to use. Movable tooth plate and fixed tooth plate are the main sites for stone crushing, and the movable tooth plate is installed on the moving jaw to protect the moving jaw.
